Implementation Overview

In general terms, the entire implementation process whether done as a self-implementation or a managed implementation consists of several stages:

1) Prerequisites
2) Installation
3) Configuration
4) Testing (UAT)
5) GoLive


Before the installation, configuration and testing can begin, it is important to complete the prerequisites listed below.

  1. Access to iPaaS Account
    You will need to have access to the main account. Either create one or ensure you have credentials to access the main account. Click here to see details on how to create one if needed.

  2. Administrator Access to NetSuite
    You will need to have Administrator access to NetSuite Production and/or NetSuite Sandbox account. Click here to see details on how to create one if needed.

    Ensure you have administrator-level access to your NetSuite account. You will need NetSuite Account ID to install the integration app.


An integration app needs to be installed in the main user’s account before the configuration and testing can begin. The license needs to be provisioned to the main user’s account using. Please complete the installation by following steps listed below.

Step 1: Preparing NetSuite Account

  1. Login in NetSuite sandbox/production environment using login credentials with Administrator role.
  2. Install NetSuite bundle(s) — Please install the bundles in the same sequence mentioned below.
    • Bundle 1: “Celigo” bearing ID: 20038.
    • Bundle 2: “Auto-create Customer Deposits” bearing ID: 240923.
      Note: Please click here to find the instruction on how to install the bundle in NetSuite.
  3. After the installation of the bundles, go to Setup → Users/Roles and make sure if the Access Tokens option is available. If you do not see that option go to Setup → Company → Enable Features → SuiteCloud → Manage Authentication → Token Based Authentication (Please check that checkbox).
  4. Once that is completed, go to Setup → Users/Roles → Manage Roles and click the customize button on Celigo Full Access w/o 2FA [Locked] role and rename the role to “novamodule NetSuite Automation Integration App.”
  5. Please make the below changes to the role.
    – In the case of a subsidiary, select SUBSIDIARY Restrictions to ALL (Radio Button field).
    – Go to subtab: Permissions → Lists & add ‘currency’ and ‘subsidiary’ with ‘FULL’ level access, in case they are missing.
    – Go to subtab: Permissions → Setup & mark all the permissions as ‘FULL’ level access and save the role record.                            NetSuite_Permissions.png
  6. Search for Employee Name in the global search which will be used to create the access token id and secret. After finding the correct employee record, navigate to Access tab and add the role which you created earlier – novamodule NetSuite Automation Integration App.
  7. Generate Access token id & secret with App Name: “Novamodule eTail Connector” using the same employee which we used in the Step#6.
    Note: Please click here to find the instruction on how to generate NetSuite token id and secret. The role/employee used to generate token id and secret should not be deactivated in NetSuite.
  8. Store the token id & secret and use them to establish the connection in

Step 2: App installation in

  1. Install “NetSuite Auto-create Customer Deposit” Integration App in using the repository.

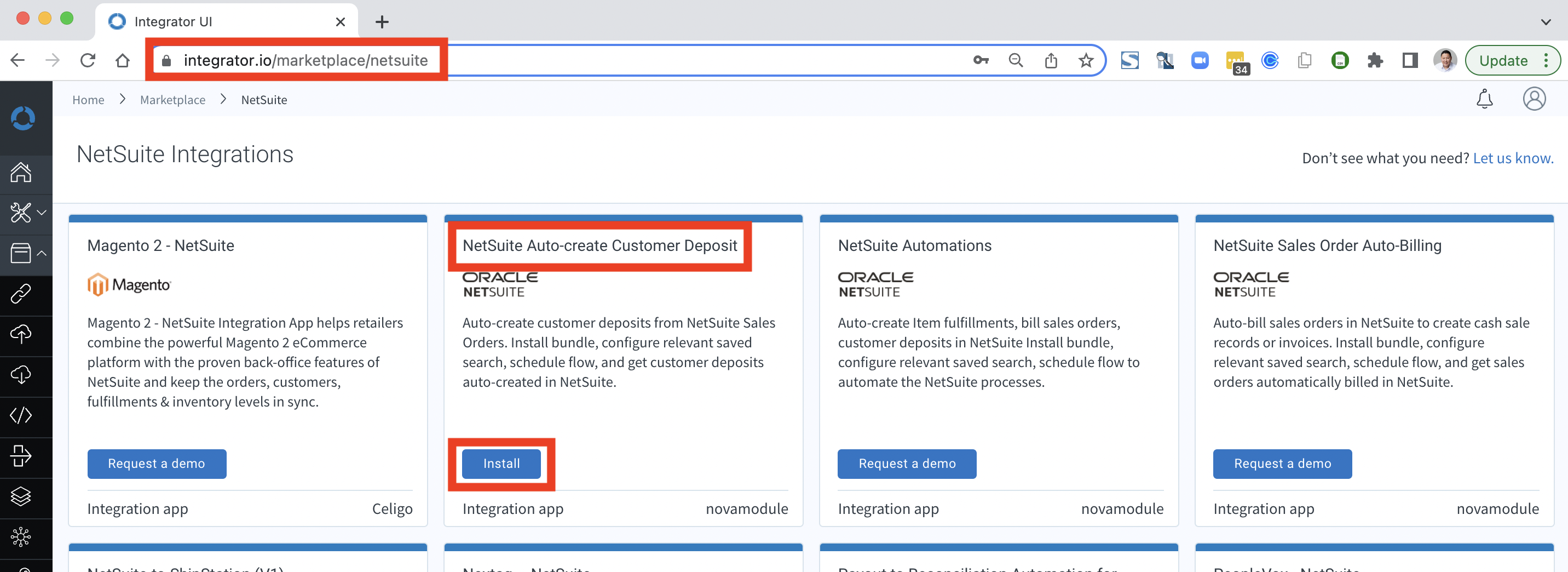

    1. While logged into your account, navigate to and search for ‘NetSuite Auto-create Customer Deposit’ (you can use Control/Command + F key combination to make it easier to perform a search);
    2. Click “Install” buttonIntegrator_App_-_Auto-create_Customer_Deposit.png

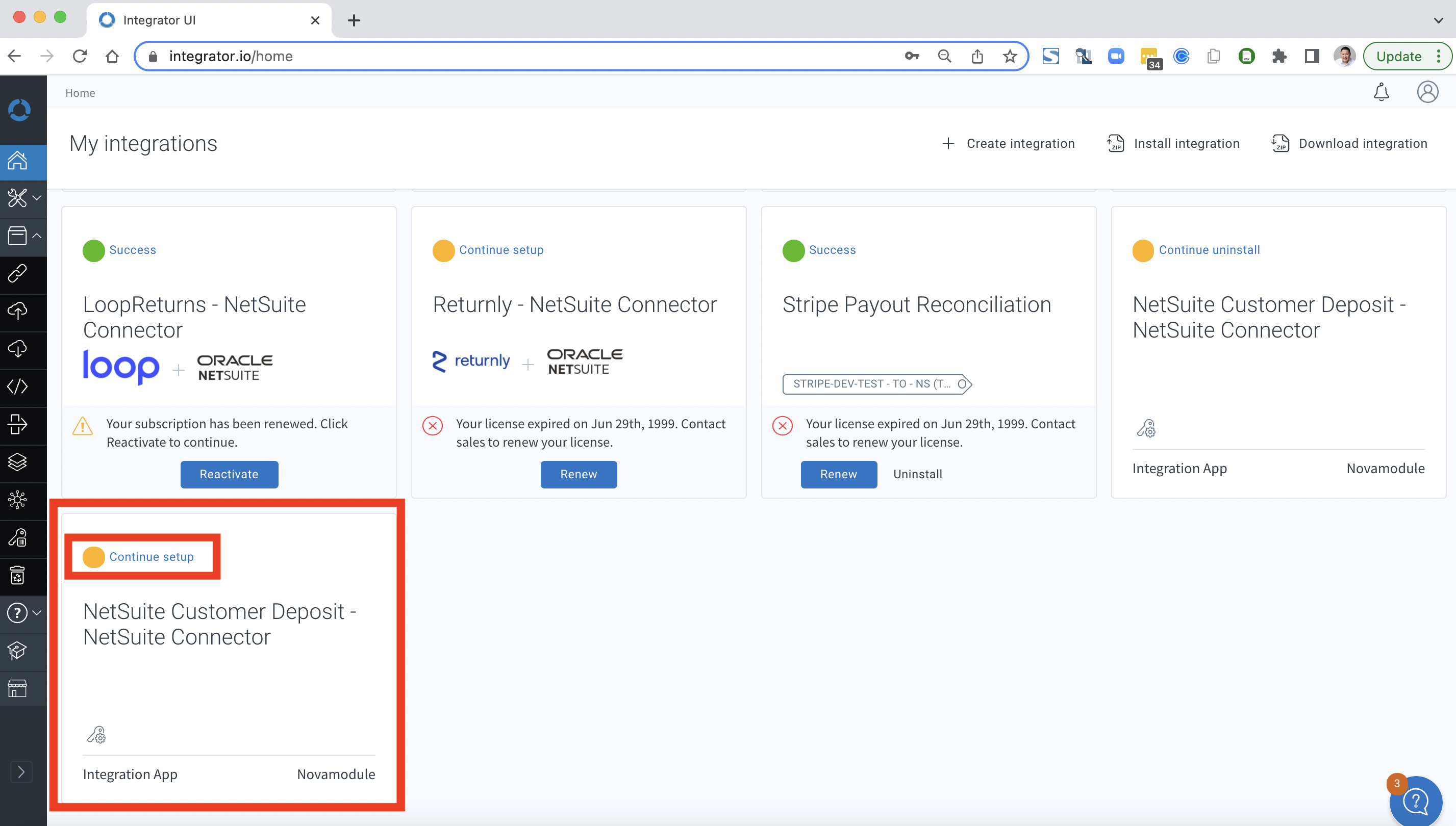

  2. Locate your integration and click on ‘Continue setup”.Integrator.io_-_NetSuite_Customer_Deposit.png

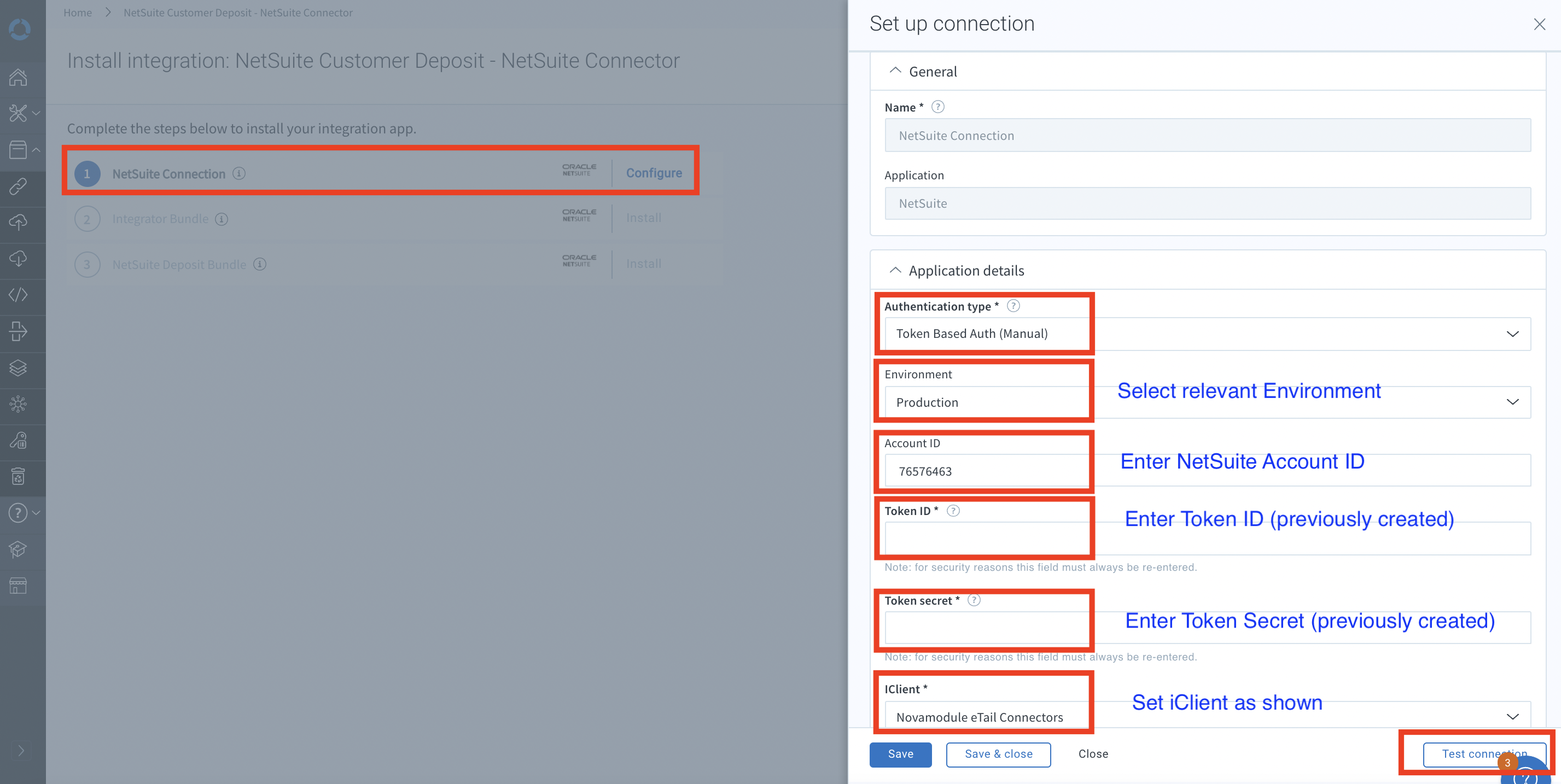

  3. Set up NetSuite connection as shown below. Be mindful of putting your own NetSuite account values where necessary. Once all relevant fields are populated/selected, please click on ‘Test connection’ and wait for the to display either a success message or failure. If the connection tested without issues, click Save & close to move to the next step.Integrator.io_-_NetSuite_Connection.png

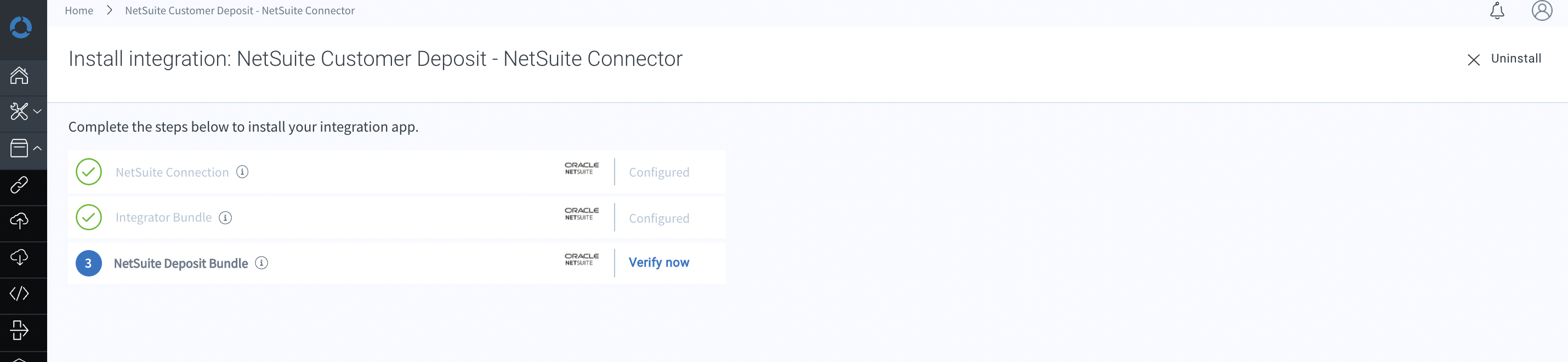

  4. Because you already pre-installed relevant NetSuite bundles all you want to do is to click “Install” and right away you can click “Verify now” options for each bundle installation step. You should now have your integration app installed in your account.Integrator.io_-_Install_Integration.png

Note: In case you don’t see “Install button” please contact us through the support widget.

NetSuite Bundle Installation

Please follow below instructions to install any bundle in NetSuite

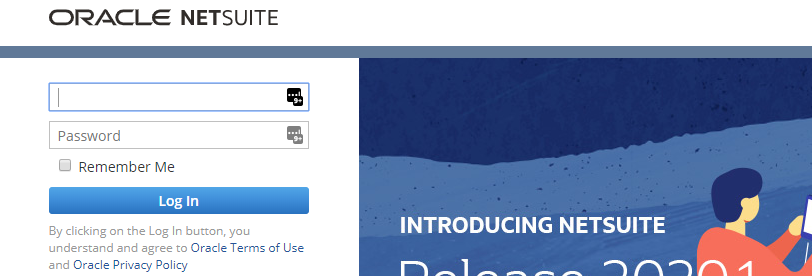

  1. Login into NetSuite with login ID/Password using this link

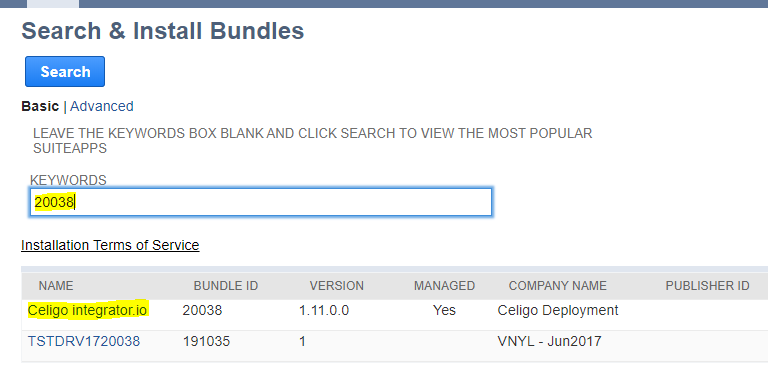

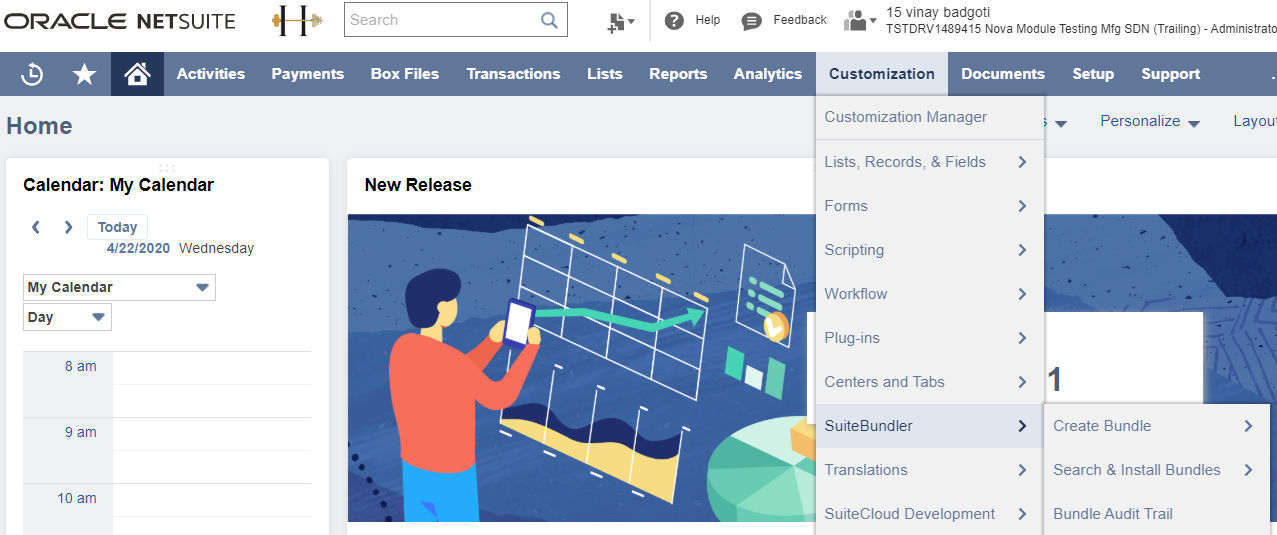

    2. Go to Customization → SuiteBundler → Search & Install BundleNetSuite_Search_for_Bundle.png3. Type Bundle ID that you are looking to install in the KEYWORDS textbox and hit SEARCH button. It would show the Bundle in the lower tabNetSuite_Search___Install_Bundle.png

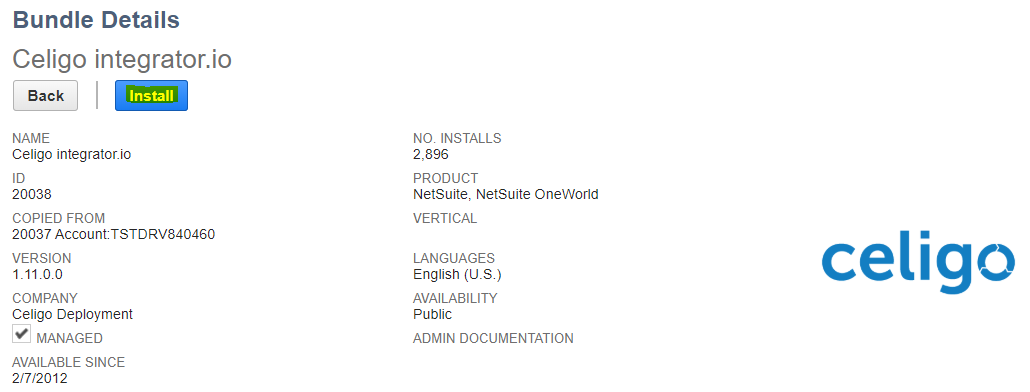

    4. Click on the Bundle Name i.e. CELIGO INTEGRATOR.IO and then INSTALL button to install it


NetSuite Token Generation

Please follow the below instructions to generate NetSuite access token.

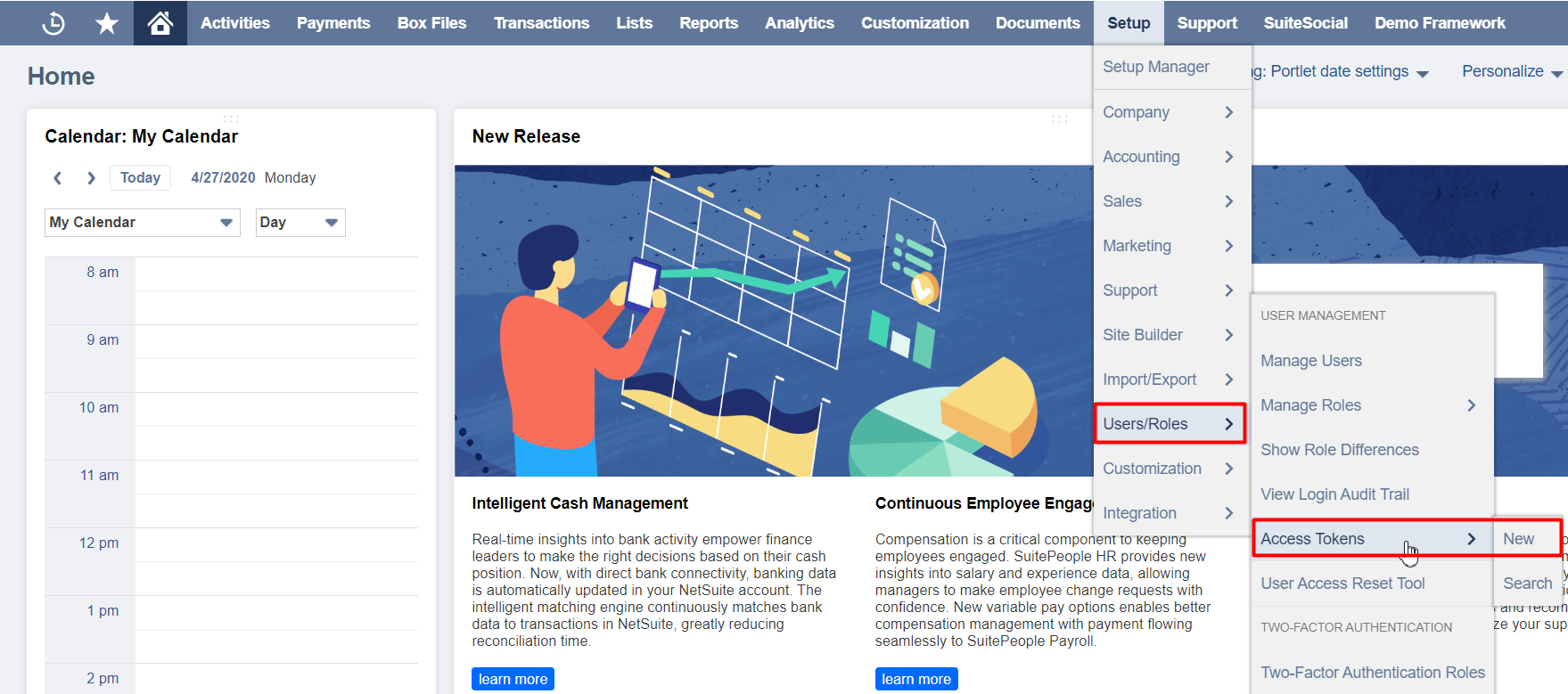

1. Goto Setup → User/roles → Access tokens → New


2. If you are unable to find Access tokens then follow the below steps to enable the access tokens in your NetSuite.

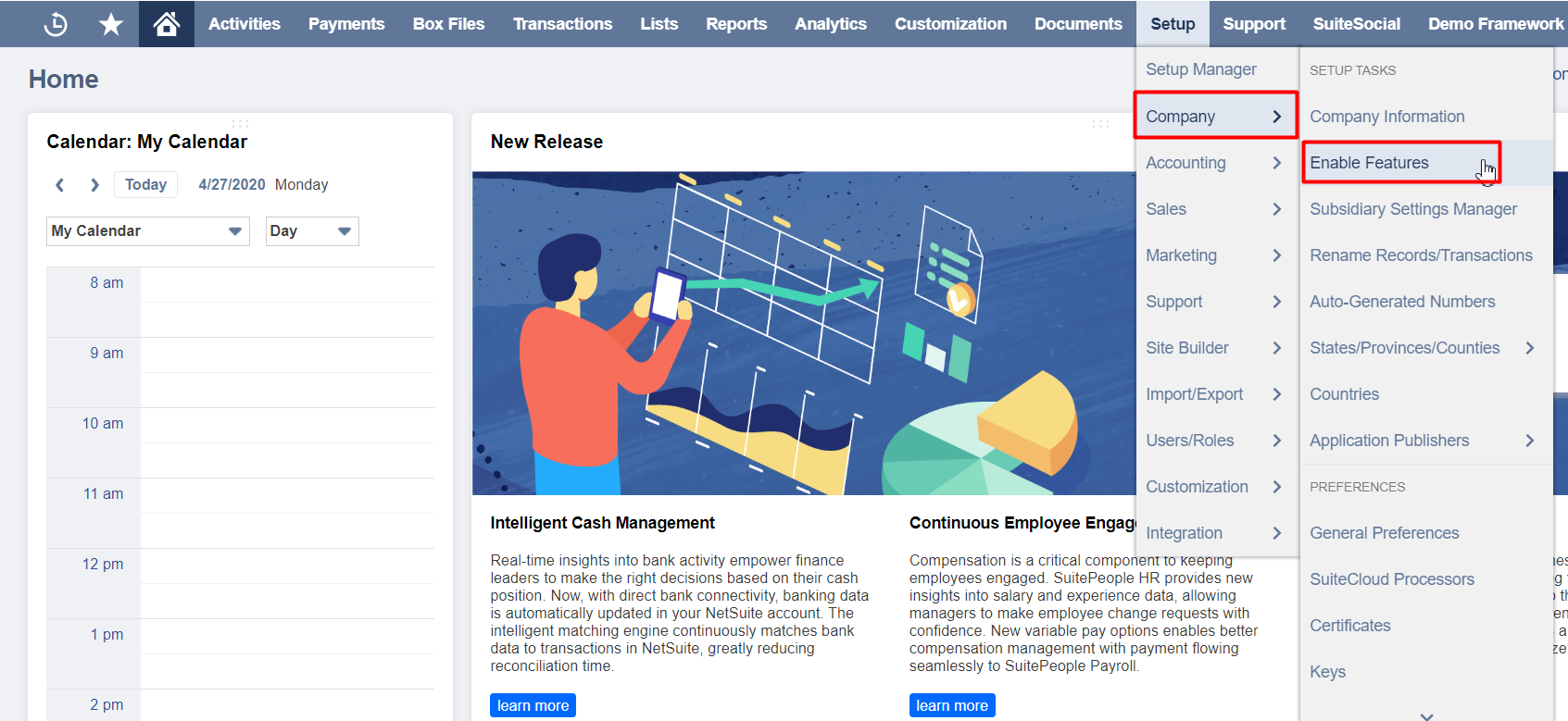

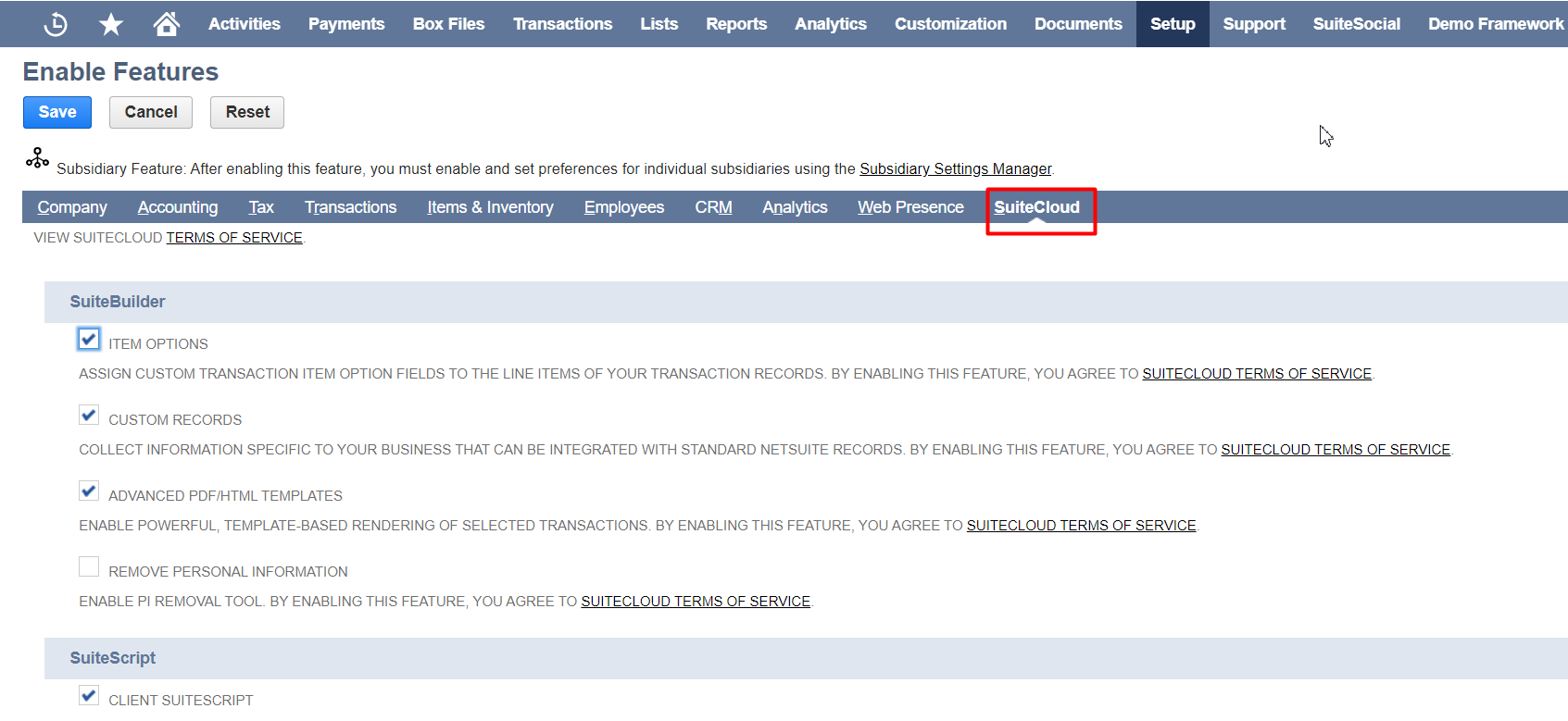

a)Goto Setup → Company → enable features → Suite cloud → Token Based authentication → check the checkbox.




b) Now, repeat step 1.

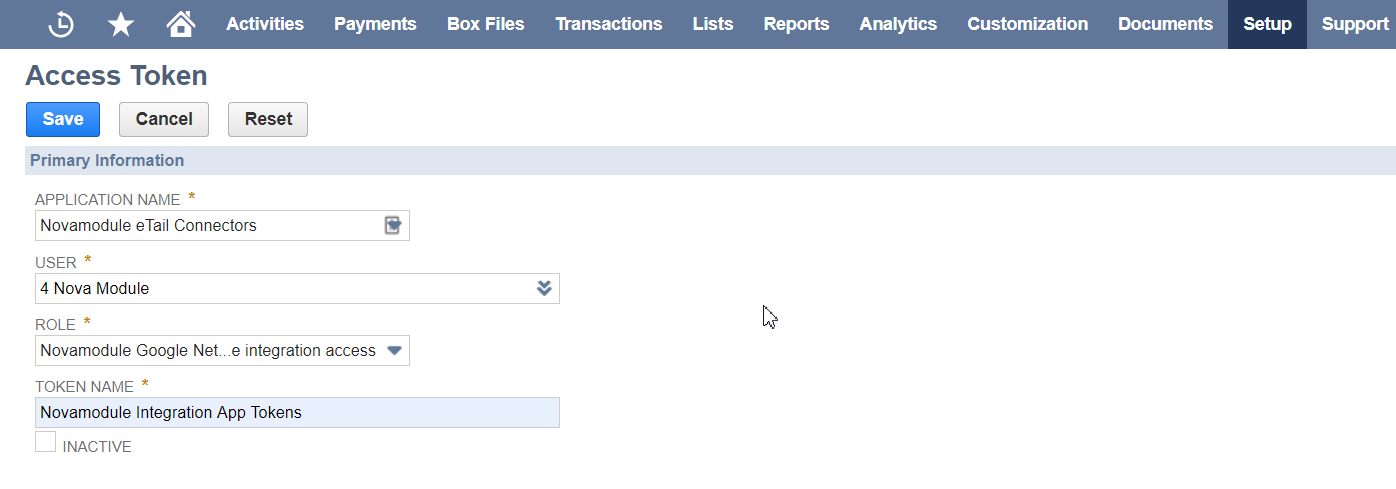

3. Fill in all the required values and click save like below.

Application Name: Novamodule etail Connector
User: Novamodule (the one with Admin access)
Token Name: Give it a meaningful as per the Integration App you are installing

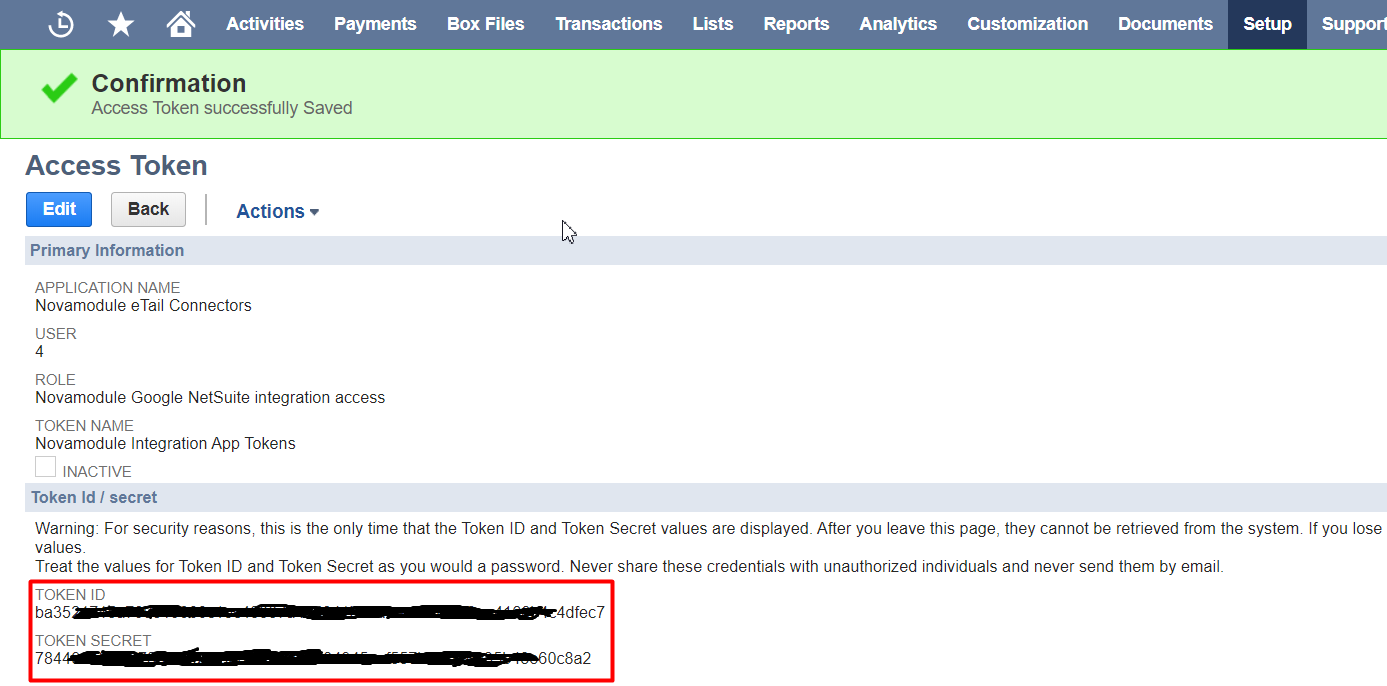

4. Make a note of the below generated Token ID and Token Secret.

Note: These Tokens will be used to set up connections of with NetSuite.
